Custom Animation in Flutter

In this post, I’ll explore how to implement custom animations in Flutter to create engaging and smooth transitions between screens.

What is Custom Animation?

Custom Animation in Flutter allows developers to create unique and engaging animations that enhance the user experience. Unlike predefined animations, custom animations give you full control over the animation's behavior, timing, and appearance.

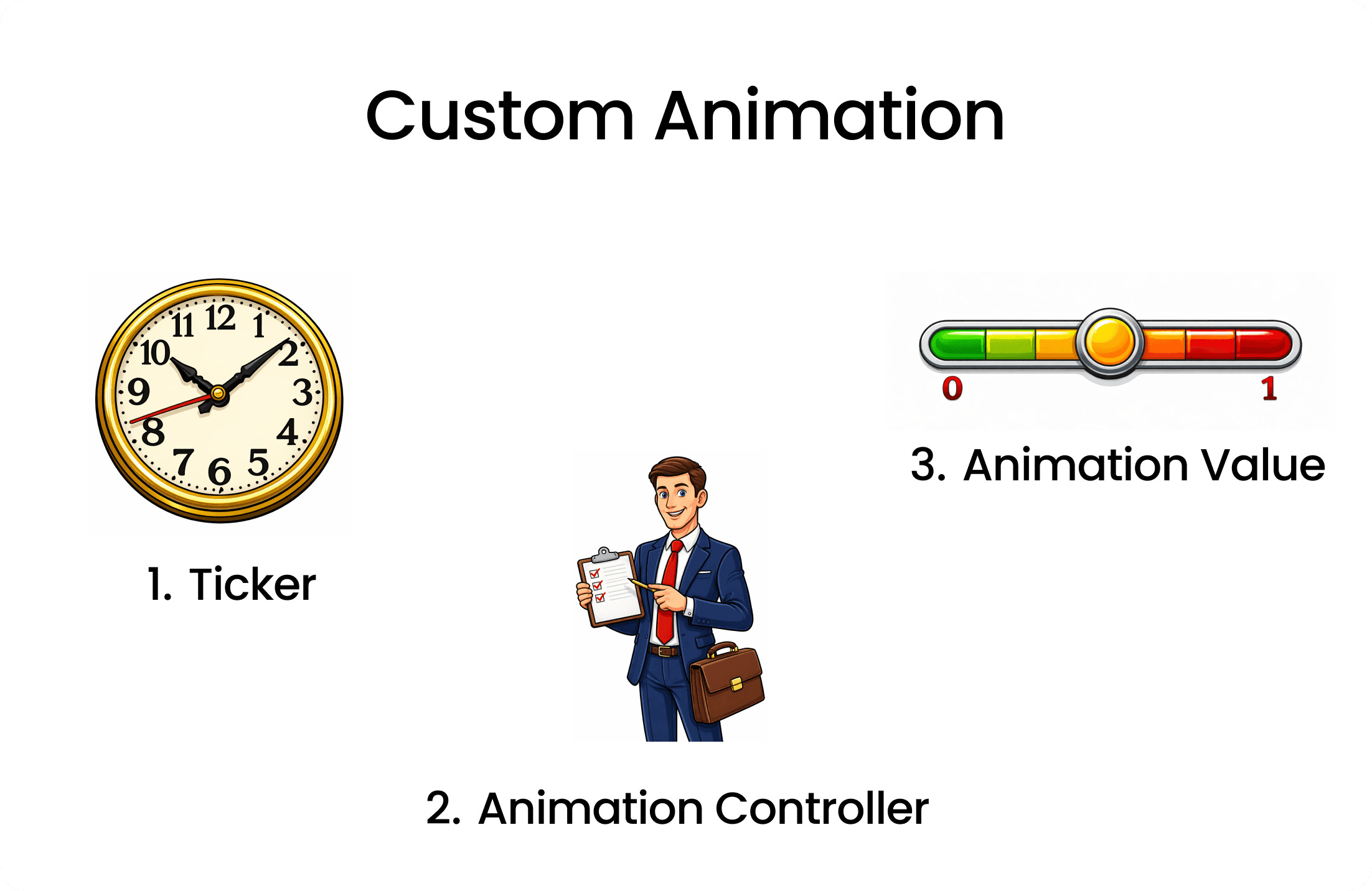

Main Components of Custom Animation

To implement Custom Animation in your Flutter app, you need to understand the following main components:

Ticker: Its like a tick / count of clock that for each tick it triggers a animation frame.
AnimationController: It is like manager of the animation. It controls the animation's duration, start, stop, and reverse.
Animation Value: It represents the current value of the animation at any given frame.Value is between 0.0 to 1.0.

Implementing Custom Animation

Define the Animation Controller

// Inside your StatefulWidget
class _AnimationidgetState extends State<AnimationWidget> with SingleTickerProviderStateMixin {
  late AnimationController _controller;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      duration: const Duration(seconds: 2),
      vsync: this,
      lowerBound: 0.0,
      upperBound: 1.0,
    );
  }
  _controller.forward(); // Start the animation

  _controller.addListener(() {
    setState(() {
      // Update UI
    });
    print(_controller.value); // Print the current animation value
  });

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }
}

Create a variable of type AnimationController called _controller.
Initialize the controller in initState method and AnimationController requires duration and vsync properties.
duration: Specifies how long the animation will run.
vsync: Needs a TickerProvider, which will be most of time the State object itself. So we add with SingleTickerProviderStateMixin to the State class to provide the ticker.
lowerBound and upperBound: Define the range of values for the animation.
this refers to the current State object.
As far now we got the animation controller ready and the ticker is also set up.
To start the animation we call _controller.forward().
If u want to see how values are changing during the animation we can add a listener to the controller using _controller.addListener().In console we can see the values changing from 0.0 to 1.0 during the animation.
And also we have included setState() inside the listener to update the UI on each frame.
Finally, we dispose the controller in the dispose method to free up resources.

// Inside your build method
@override
Widget build(BuildContext context) {
  return Scaffold(
    body: Center(
      child: Container(
        width: 100 + (_controller.value * 100), // Animate width from 100 to 200
        height: 100 + (_controller.value * 100), // Animate height from 100 to 200
        color: Colors.blue,
      ),
    ),
  );
}

In the build method, we create a Container widget.
We use the _controller.value to animate the width and height properties of the Container.
As the animation progresses, the width and height of the Container will increase from 100 to 200.

Full Code Example

import 'package:flutter/material.dart';

class AnimationWidget extends StatefulWidget {
  const AnimationWidget({super.key});

  @override
  State<AnimationWidget> createState() => _AnimationidgetState();
}

class _AnimationidgetState extends State<AnimationWidget>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;
  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      vsync: this,
      duration: Duration(seconds: 4),
      lowerBound: 0.0,
      upperBound: 1.0,
    );
    _controller.forward(); // Start the animation

    _controller.addListener(() {
      setState(() {
        // Update UI
      });
      print(_controller.value); // Print the current animation value
    });
  }

  @override
  void dispose() {
    super.dispose();
    _controller.dispose();
  }

  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          width:
              100 + (_controller.value * 100), // Animate width from 100 to 200
          height:
              100 + (_controller.value * 100), // Animate height from 100 to 200
          color: Colors.blue,
        ),
      ),
    );
  }
}

How to reverse the Animation

// To reverse the animation
_controller.reverse(from : 1);

Instead of using _controller.forward() to start the animation, you can use _controller.reverse() to reverse the animation from the end to the beginning.
Its important to define from property to specify the starting point of the reverse animation.

How to Loop the Animation

In order to loop the animation , we need to know when the animation is completed or dismissed.

_controller.addStatusListener((status) {
  if (status == AnimationStatus.completed) {
    _controller.reverse();
  } else if (status == AnimationStatus.dismissed) {
    _controller.forward();
  }
});

We can use addStatusListener method of the controller to listen for animation status changes.
When the animation status is completed, we call _controller.reverse() to reverse the animation
When the animation status is dismissed, we call _controller.forward() to start the animation again.

Curve animations

As far now we have seen linear animations where the animation progresses at a constant rate.
But in real world most of the animations are not linear, they have acceleration and deceleration effects.
Flutter provides CurvedAnimation class to apply different easing curves to the animation.

Using CurvedAnimation

// Inside your StatefulWidget
late Animation _animation;
@override
void initState() {
  super.initState();
  _controller = AnimationController(
    duration: const Duration(seconds: 2),
    vsync: this,
  );

  _animation = CurvedAnimation(
    parent: _controller,
    curve: Curves.easeInOut, // Apply easeInOut curve
  );

  _controller.forward();
}

We create a variable of type Animation called _animation.
We initialize the _animation using CurvedAnimation class.
parent: We pass the _controller as the parent of the curved animation.
curve: We specify the easing curve we want to apply. In this case, we use Curves.easeInOut for a smooth acceleration and deceleration effect.
we cannot use lowerBound and upperBound properties with CurvedAnimation, because the curve itself defines the range of values.So we remove those properties from the AnimationController.
Check Curves Documentation

Tween Animation.

Tween stands for "in-between" and it defines how to transition from a starting value to an ending value.
Tween animations are useful when you want to animate properties that are not just simple numeric values, such as colors, sizes, or positions.

Using Tween Animation

// Inside your StatefulWidget
late Animation<Color?> _colorAnimation;
@override
void initState() {
  super.initState();
  _controller = AnimationController(
    duration: const Duration(seconds: 2),
    vsync: this,
  );

  _colorAnimation = ColorTween(
    begin: Colors.red,
    end: Colors.blue,
  ).animate(_controller);

  _controller.forward();
}

We create a variable of type Animation<Color?> called _colorAnimation.
We initialize the _colorAnimation using ColorTween class.
begin: We specify the starting color of the animation.
end: We specify the ending color of the animation.
We call the animate method on the ColorTween and pass the _controller to link the tween animation with the animation controller.

// Inside your build method
@override
Widget build(BuildContext context) {
  return Scaffold(
    body: Center(
      child: Container(
        width: 100,
        height: 100,
        color: _colorAnimation.value, // Use the tween animation value
      ),
    ),
  );
}

In the build method, we create a Container widget.
We use the _colorAnimation.value to set the color property of the Container
As the animation progresses, the color of the Container will transition from red to blue.
There are many tween classes available in Flutter like SizeTween, RectTween, IntTween, Tween<double>, etc. You can choose the appropriate tween class based on the property you want to animate.

Custom Animation in Flutter

What is Custom Animation?

Main Components of Custom Animation

Implementing Custom Animation

Define the Animation Controller

Using Animation Value to Animate Widget Properties

Full Code Example

How to reverse the Animation

How to Loop the Animation

Curve animations

Using CurvedAnimation

Tween Animation.

Using Tween Animation

Using Tween Animation Value in Widget
